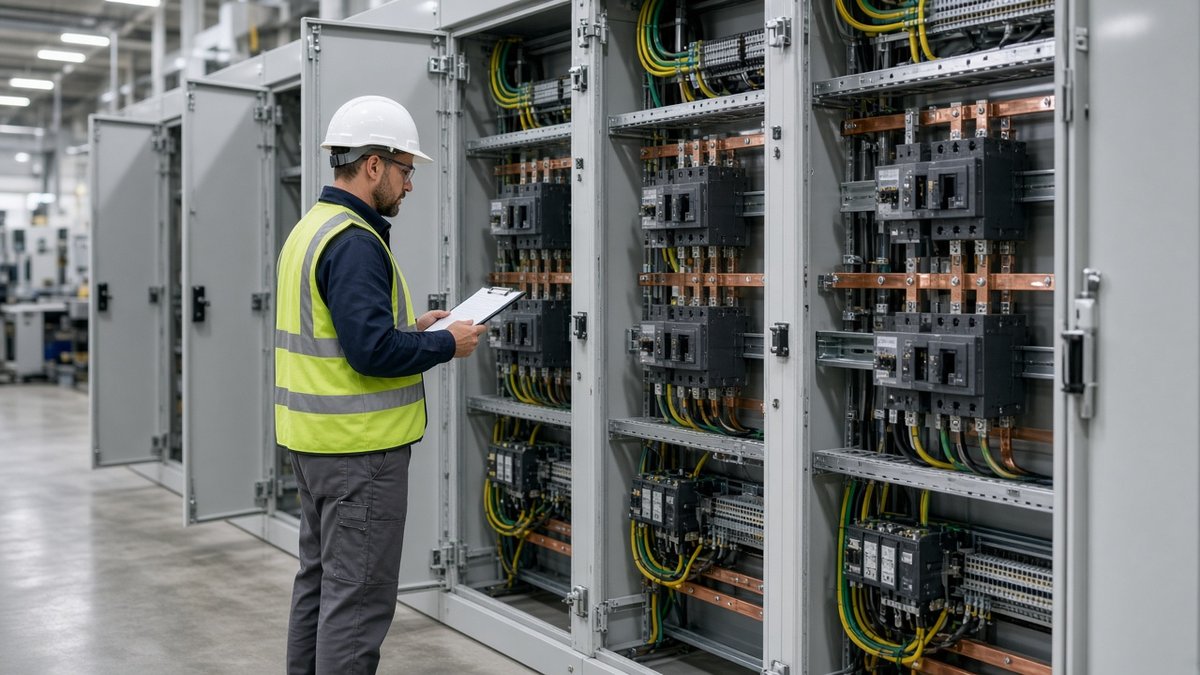

Importing Switchboards from China into Australia: 8 Checks Before You Order

Why the Cheapest Switchboard Quote Is Rarely the Cheapest Switchboard

Australian contractors, builders and electrical wholesalers are looking harder at China for main switchboards, distribution boards, motor control centres and custom electrical cabinets. The reasons are simple: local fabrication queues are long, project budgets are tight, and Chinese panel builders can work to almost any specification.

But a switchboard is not a carton of fasteners. It is a safety-critical assembly that has to satisfy Australian standards, a consulting engineer, the network or site inspector and, in the end, the person who signs off the installation. If any one of those says no, the cheap quote becomes the most expensive line on the project.

Here are the eight checks we run with buyers before an order for switchboards or distribution cabinets is placed in China.

1. Quote Against AS/NZS 61439, Not "International Standard"

In Australia, low-voltage switchgear and controlgear assemblies are covered by the AS/NZS 61439 series, and the installation has to work with AS/NZS 3000 (the Wiring Rules). Many Chinese factories build to IEC 61439 or to Chinese GB standards, which are closely related but not automatically accepted on your project.

• Put AS/NZS 61439 (and the relevant part, such as 61439.2 for power switchgear assemblies) in the RFQ itself, not just in a later email.
• Ask how the factory meets design verification for the assembly: test reports, calculation or comparison with a tested reference design.
• Ask what routine verification they perform on every unit before it leaves the factory, and ask for a sample routine test record.

2. Fault Level and Ratings Must Match Your Site

A board that is perfect for one building can be unsafe in another. Confirm these values in writing on the drawings, not just in the quote:

• Rated current of the main busbar and each outgoing circuit
• Rated short-time withstand current (Icw) and duration, matched to the prospective fault level at your point of supply
• Rated voltage, frequency and earthing system
• Ambient temperature and derating assumptions, which matter in hot Australian plant rooms and outdoor kiosks

3. Form of Separation and IP Rating

Australian specifications usually call for a specific form of separation (Form 1 up to Form 4 and its sub-types) and a minimum IP rating. These two items change the steelwork, the cost and the lead time, so they must be locked in before pricing. A quote for a Form 2 indoor board cannot be compared with a quote for a Form 3b outdoor board.

4. Component Brands Your Inspector Will Accept

Many Australian specifications name approved breaker, contactor and meter brands, or require equal-and-approved substitutes. Agree the full bill of materials up front.

• Ask for a component list with brand, model and rating for every breaker, meter, relay and terminal.
• Write into the order that no substitutions are allowed without written approval. Quiet component swaps are one of the most common problems we see in electrical orders.
• Make sure spare parts for the main devices are available in Australia, so a failed breaker in year three is not a three-month wait.

5. Steelwork, Finish and Busbars

The cabinet itself is where corners are cut first because it is the hardest part for a buyer to check from a photo.

• Specify sheet thickness for the frame, doors and gland plates.
• Specify powder coat colour (often an Australian Standard colour such as Orange X15 or a grey named in the spec), coating thickness and whether outdoor boards need extra corrosion protection for coastal sites.
• Specify busbar material, cross-section and plating, and ask for the busbar sizing calculation.

6. Drawings Approved Before Steel Is Cut

Insist on a full set of drawings for your approval: general arrangement, single-line diagram, schematics, busbar layout and labelling schedule. Labels and danger signage should be in English and match your site naming. Nothing goes into production until those drawings are signed off by your engineer.

7. Inspect Before It Ships, Not After It Lands

Once a switchboard is on a ship, every fix becomes a site fix at Australian labour rates. A pre-shipment inspection in the factory should cover:

• Dimensions, door clearances and gland plate positions against the approved drawings
• Component brands and ratings against the approved bill of materials
• Torque marking on busbar joints and terminations
• Witnessing the routine tests: insulation resistance, dielectric test, functional checks and continuity of protective circuits
• Labels, nameplates and the documentation pack

8. Packing, Shipping and Landed Cost into Australia

Switchboards are heavy, tall and easy to damage. Ask for lifting points, internal bracing of heavy devices, moisture protection and crating suitable for sea freight. Any timber packaging must meet Australian biosecurity rules (ISPM 15 treated and marked), or the shipment can be held at the border.

Then compare quotes on landed cost, not unit price: freight, insurance, customs clearance, 10 per cent GST on imports, any duty, local delivery and installation. A China-Australia Free Trade Agreement (ChAFTA) certificate of origin may reduce or remove duty on many goods, so ask your customs broker to confirm the tariff classification and the paperwork before you order.

The Bottom Line

Buying switchboards and distribution cabinets from China can work very well for Australian projects, but only when the standard, the ratings, the components and the inspection plan are agreed before production starts. The buyers who get burnt are usually the ones who compared prices first and asked questions later.
